The Metal Frame is Cracked!

After removing the bearing caps, I was able to remove the main shaft from the frame. The shaft at this point  includes three major components. The main drive pulley, the seal housing and rear main stone housing end plate as well as the runner stone and it's enclosure.




 Once this large subassembly is removed from the mill what is left is the mill's metal frame and the mill's wooden frame.



Upon close inspection of the metal frame I found a large crack adjacent to the inboard or central radial bearing seat. This will need to be repaired. It is probable that it was overlooked when the frame was repaired previously.

Main Journal Bearing Disassembly

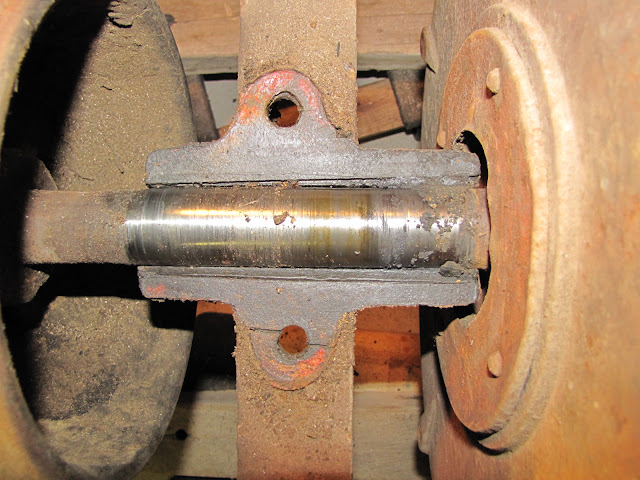

More recently I have been taking apart the main shaft bearings. The inboard bearing is located between the pulley and the runner stone on the center frame support. Shown below with bearing cap removed

Here is a shot of the bearing cap. Shaft looks ok and can still be used without any repairs so far.

Next I moved to the adjustment wheel section located at the end of the main shaft. This region includes the stone gap adjustment knob, thrust bearing and grease cup, main thrust spring and radial bearing assembly. Shown below with adjustment knob assembly and axial retainer bolts removed.



Here is what it looks like with the thrust bearing housing, main spring and spring retainer removed.

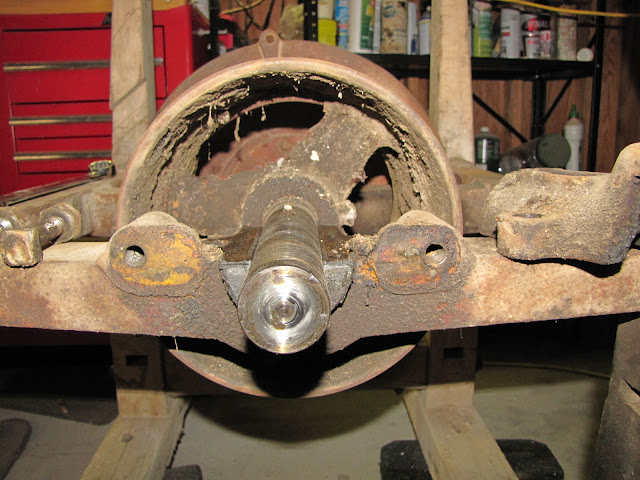

and after removing the radial bearing cap it looks like this.



Tear Down and Clean Up

I have spent the last few sessions disassembling the mill. I photograph everything as I go so I can remember how to put everything back together. With the mill sitting on two furniture dollies I rotated the mill and photographed every detail in the assembled state from lots of different angles. Next, I began removing the larger accessory items like the grain hopper and feed chute.

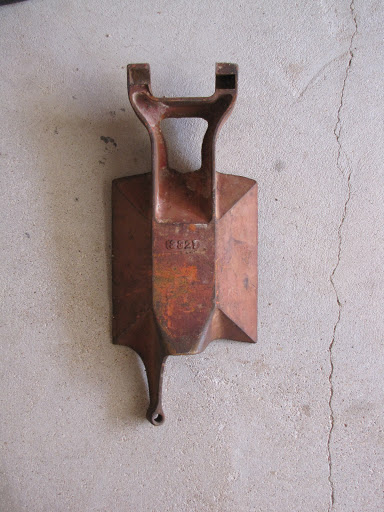

Once I have them off the mill I take snap shots of the piece from all angles looking to capture specific details or damage. For instance, here is the bottom of the feed chute. With what I believe is the part number for the chute

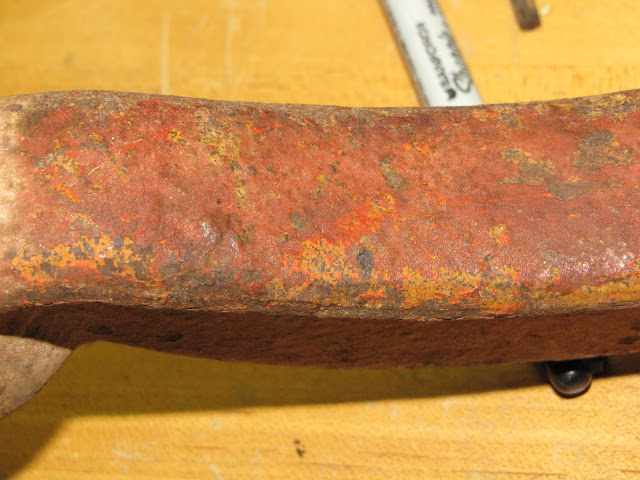

After a complete photo documentation, I make some handwritten notes in a log book especially if there are damaged feature or interesting items worth recording. Below I am trying to determine exactly what the original color was. There appear to be two coats of paint. One thin yellow layer similar to caterpillar yellow and one thick heavy top layer similar to Massey Ferguson Red.



While disassembling the Bedstone Support Bearing I found a aftermarket component added to the upper bearing clamp assembly. It is a pipe fitting. It was placed under the bearing cap presumably to take up slack space in the clamp. I think there may have been a spring here originally pushing down in the upper spherical bearing journal insert.



Below is an image of the inboard face of the bedstone. It looks to be in good condition. The bedston is missing a steel perimeter hoop. I am guessing this type of bedstone mounting arrangement was deployed to allow the bedstone to tilt on the ear features located at 3 and 9 o'clock. Perhaps this would allow the stone to align more precisely with the runner stone.



The next image is of the inboard face of the runner stone. Also of note, is the grain auger, Bedstone mounting tabs, and the flour exit chute opening located in the main housing sheet metal.. The runner stone has a very large chip missing from one corner. This may require replacing the stone.

Miss Minnie's Mill Restoration Begins

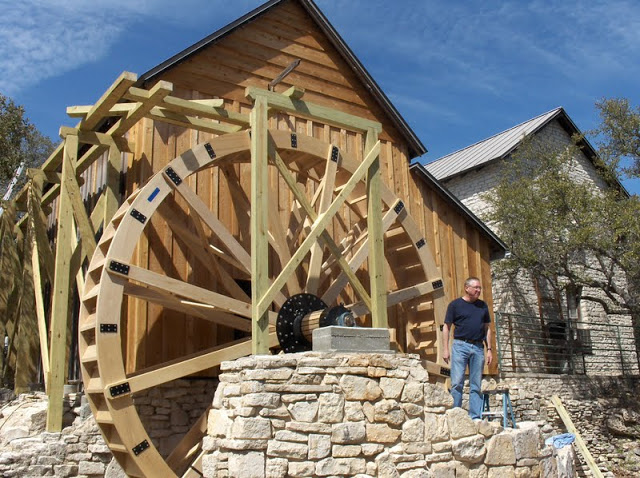

Last week, I started the restoration of a 14" Nordyke and Marmon Stone Buhr Mill. This mill belongs to the Anderson Mill Garden Club. Since I was elected chairman of the Memorial Board last year, I have been involved in a number of restoration projects for the club. The first was the replacement of the 16 foot water wheel seen here. Our intent is to connect the Nordyke mill to this waterwheel eventually using it to grind corn for our scholarship program.

The age of the Nordyke Mill is not known to me. It has a patent date of August 1st, 1870. It is the smallest of the three shown here in this catalog page ~1920. It came with a additional feature called a bolter that was used to sift the ground grain.

It ran at about 1000 RPM according to this document. and needed ~3hp at that speed. We think it was powered by a 6HP 450 RPM Fairbanks Morse Flywheel Engine that is being restored by Alan Null at Diversified Machining in Bertram, Texas.

The link below will take you to the Picasa Image Archive for this project.

https://picasaweb.google.com/AndersonMillGardeners/NordykeMarmonRestoration

The mill was in remarkably good condition for its age. Minnie Anderson used this mill presumably to grind corn between 1923 and 1945. It was fitted with a homemade hopper extension that allowed the operator to load a larger amount of grain.

It is also a "mostly" complete assembly. The only missing part I have noticed is the sifter/bolter attachment. Hopefully, I can talk my friend into making a replacement.

There was some damage and a subsequent repair to the main steel support frame. This weld repair appears on both sides of the frame.

Additionally, the wooden skids that contact the floor had significant insect damage and were rotten. One of the short corner posts was completely detached from the floor skid member.
